USB 3.0 Video Capture Card with HDMI Pass-Through and Audio Support

Effortlessly record and stream high-definition video content from a range of HDMI sources directly to your computer with this USB 3.0 video capture card. Designed for both professional and personal use, this device enables smooth game streaming, video conferencing, and content creation. Featuring HDMI input and pass-through, you can capture footage while simultaneously viewing your source on an external display, ensuring seamless performance. Integrated audio input and output options support direct microphone and headset connections, making it an all-in-one solution for video and audio capture needs.

Specifications

• Interface: HDMI input, USB 3.0 output
• Maximum Input Resolution: 4K at 60Hz
• Maximum Capture Resolution: Full HD 1080p @ 60 fps
• Audio Support: 48KHz PCM Stereo sound, microphone port, headset port
• Video Color: RGB Full Range (0-255)
• Data Bandwidth: USB 3.0 (up to 350 MB/s)
• Compatibility: Windows, MacOS, Android
• Works with most video and audio capture software, including VLC and OBS
• Included: HDMI capture device, 0.5m USB 3.0 cable

Features

• Simple plug-and-play setup with no drivers required
• HDMI pass-through for real-time viewing without lag
• Connects to cameras, set-top boxes, gaming consoles, and more
• Record or stream video content directly to a computer or online platforms
• Integrated microphone and headset ports for flexible audio capture
• Compact design for portability and easy installation

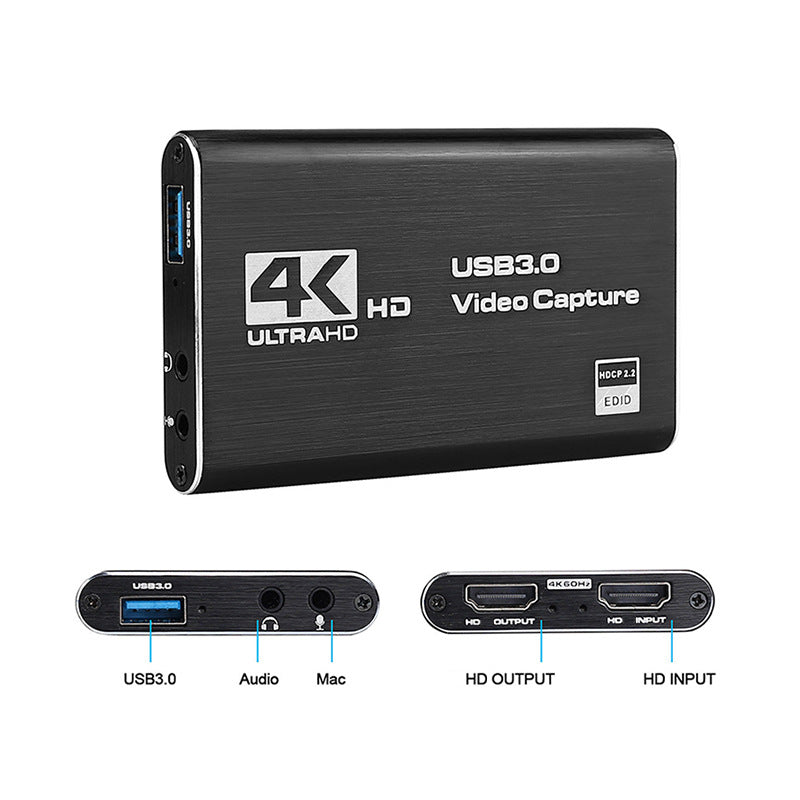

Interface Guide & Indicators

• HD Status LED: Lights up when the device is successfully capturing video from the source.
• USB Status LED: Lights up when the device is properly connected and powered via the computer‘s USB port.
• HDMI IN: Connect your video source here (e.g., gaming console, DSLR camera, set-top box).
• MIC IN: Connect an external microphone for commentary or audio capture.
• AUDIO OUT: Connect headphones or speakers for audio monitoring.
• HDMI OUT (Pass-through): Connect to a monitor or TV for real-time, lag-free viewing of your source.
• USB 3.0 OUT: Connect to your computer or laptop‘s USB 3.0 port for data and power.

Important Android Compatibility Note:

• This device is UVC-compliant and works with most modern Android phones.
• However, due to Android system driver limitations, it will only operate in USB 2.0 mode when connected to an Android device.
• For use with Android phones, a standard USB 2.0 cable is required to ensure proper connection. The included USB 3.0 cable may not work in all cases.
