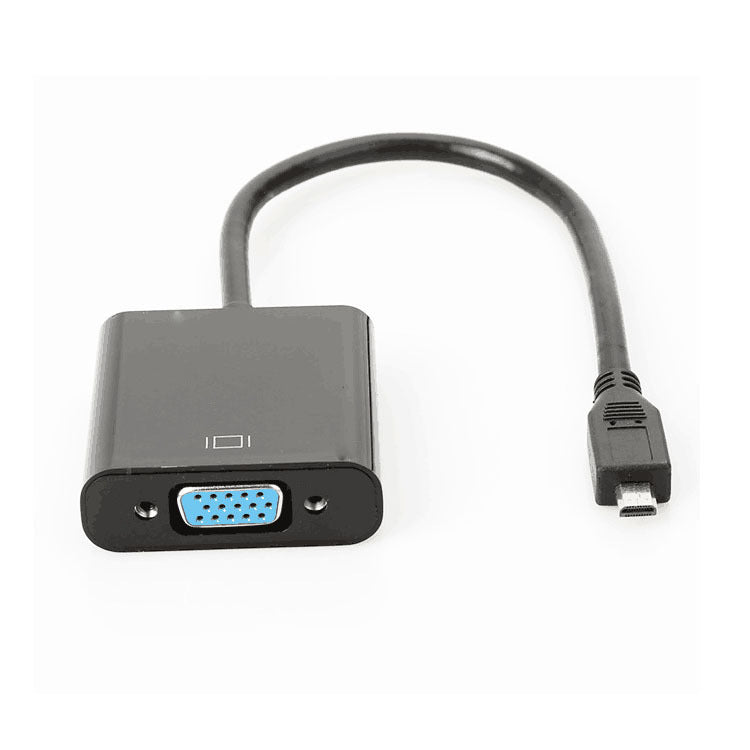

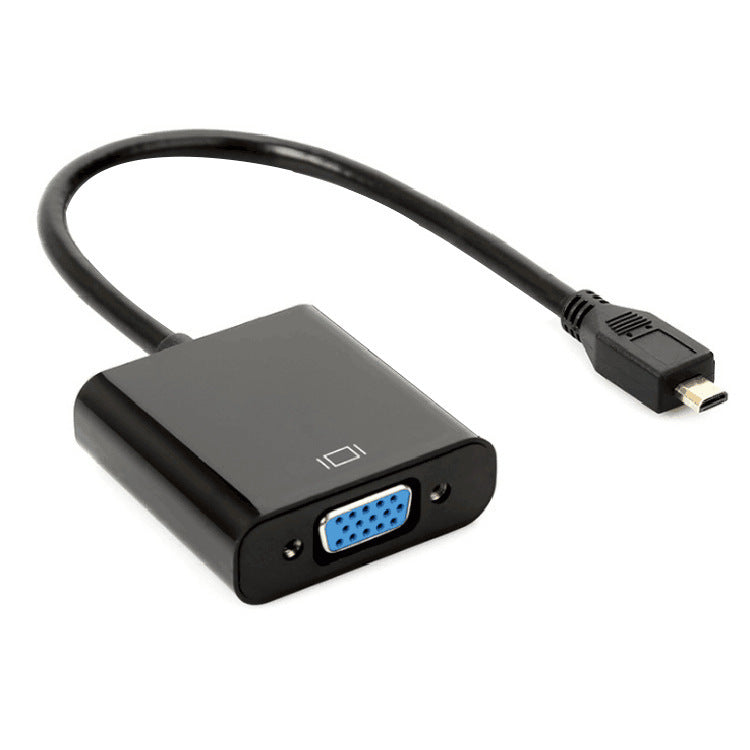

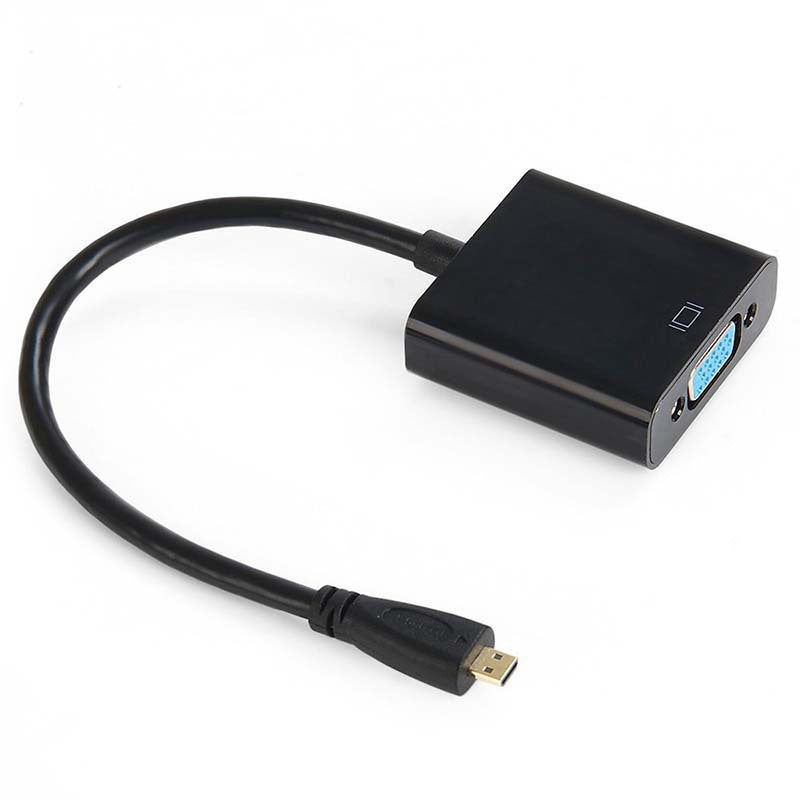

Passive Micro HDMI (Type-D) to VGA Converter with Audio

$27.95

Easily connect devices with a Micro HDMI output to VGA-compatible displays using this reliable converter adapter. Designed for convenient use with a variety of sources such as cameras, tablets, and other devices equipped with a Micro HDMI port, this adapter provides seamless video conversion without the need for external power. The integrated chip ensures stable signal processing, allowing for a straightforward solution when displaying content on monitors, projectors, or other equipment featuring a VGA input. For audio, a dedicated 3.5mm stereo output is available, ensuring a complete multimedia experience.

Specifications

  • Input: 1 x Micro HDMI (Type-D) male
  • Output: 1 x VGA (15-pin D-SUB) female
  • Output: 1 x 3.5mm stereo audio female
  • Cable length: 10 cm
  • Supported HDMI input resolutions: 800x600@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1440x900@60Hz, 1280x1024@60Hz, 1680x1050@60Hz, 1600x1200@60Hz
  • VGA output resolution: Matched to input resolution, depending on device compatibility

Performance Note & Compatibility

  • Maximum Reliable Resolution: Our testing confirms stable performance up to 1600x1200@60Hz. While some systems may support 1080p (1920x1080), this is not guaranteed for all hardware and software configurations.
  • HDCP Notice: Due to content protection protocols, this converter is designed for use with personal devices like cameras and tablets. It is not compatible with HDCP-encrypted sources such as Apple TV, most streaming sticks, or Pay-TV set-top boxes.
  • You Will Need: A standard Male-to-Male VGA Cable to connect this adapter to your display.

Features

  • Direct connection from Micro HDMI devices to VGA displays
  • Truly plug-and-play with no external power required
  • No external power required for operation
  • Integrated chip enables smooth signal conversion
  • 3.5mm audio output for connecting to speakers or headphones
  • Ideal for presentations, home or office use, and connecting modern devices to legacy monitors or projectors
  • Preserves input resolution for clear video output
