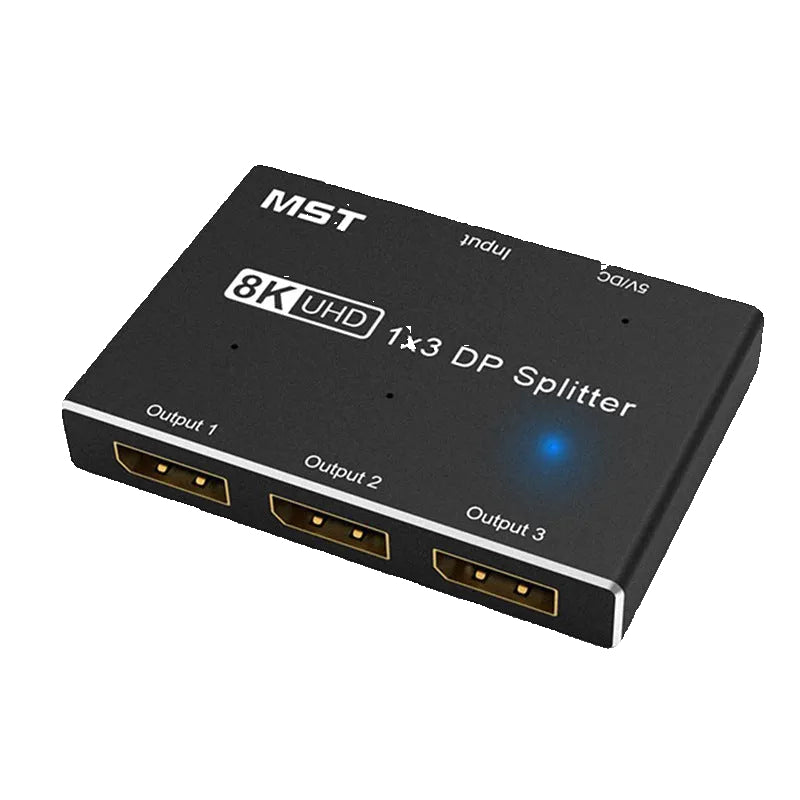

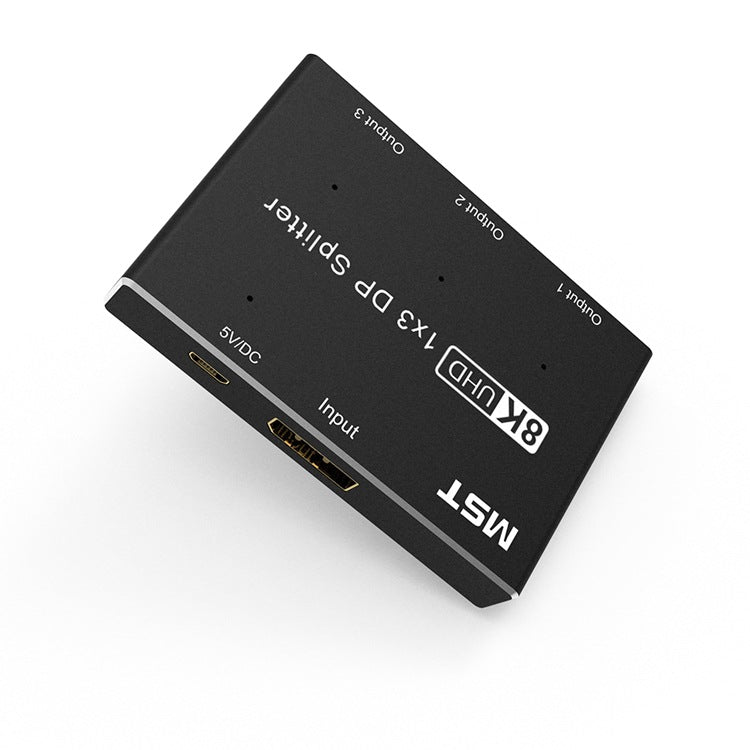

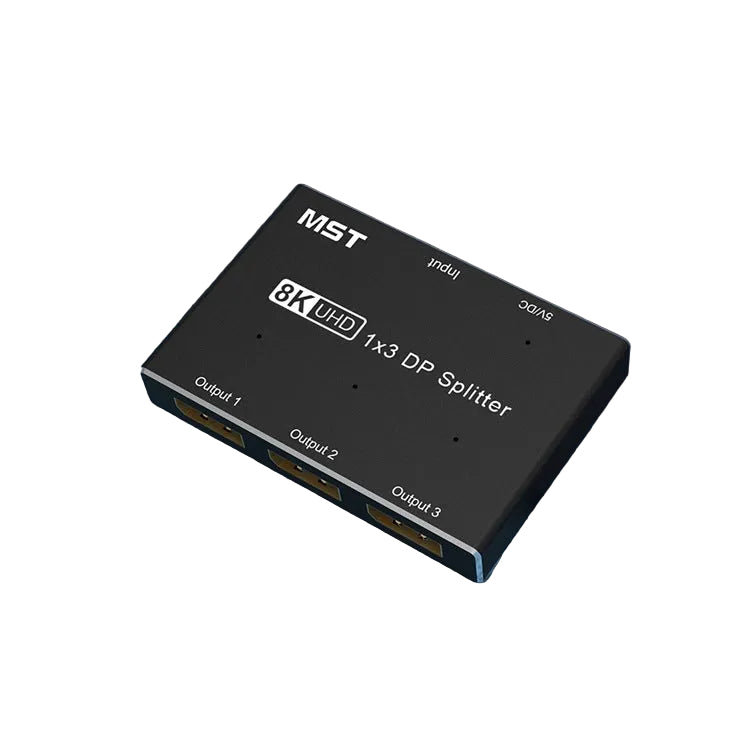

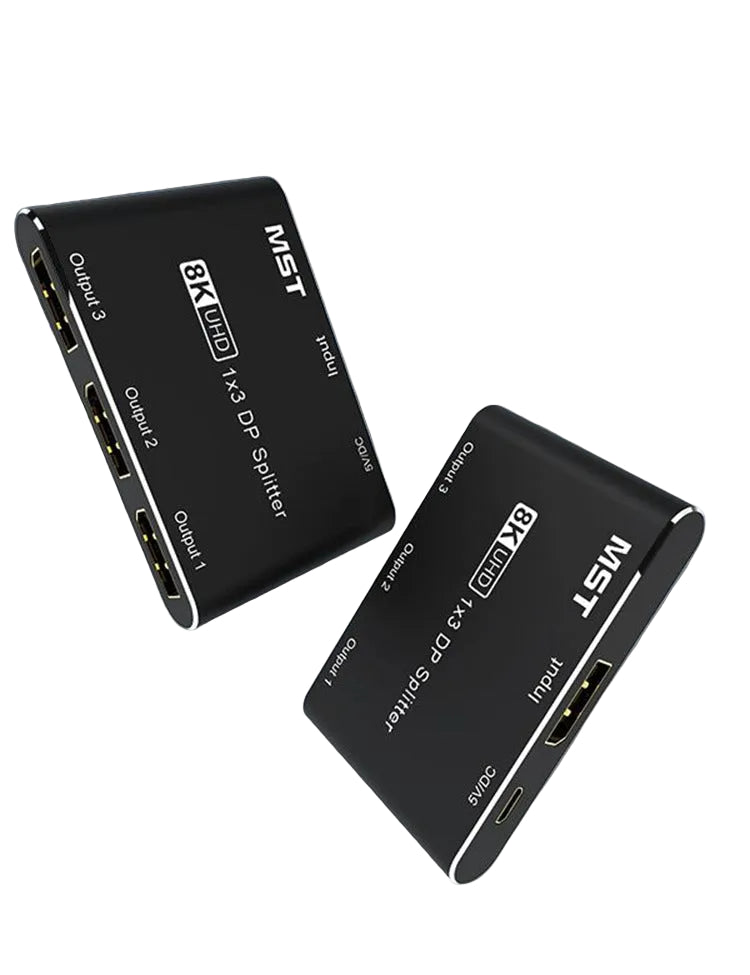

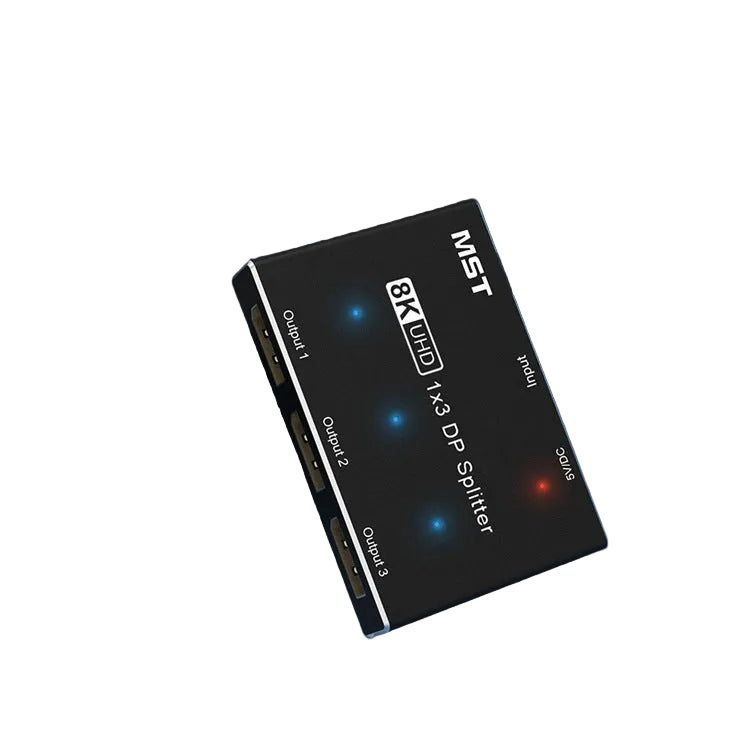

DisplayPort 1.4 MST Hub 3-Port Display Splitter, 8K@30Hz, 4K@144Hz, USB Powered, HBR3

$99.95

Expand your workspace or entertainment setup by connecting up to three monitors to a single DisplayPort-enabled computer with this 3-port MST Hub. Supporting DisplayPort 1.4, this hub enables high-resolution output such as 8K at 30Hz, 4K at 144Hz (single display), 4K at 60Hz (two displays), or 4K at 30Hz (three displays), subject to your graphics card’s capability and monitor support. Ideal for productivity, gaming, design, and multitasking environments, the hub offers both mirrored and extended desktop modes for ultimate versatility.

HBR3 bandwidth delivers smooth video and audio performance, with support for bandwidths up to 32Gbps and audio formats up to 24-bit/192kHz. The durable aluminium casing ensures reliable performance and heat dissipation, while a compact design saves valuable desk space. This hub is powered via an included USB cable, with flexible options for using available USB ports on computers, monitors, or chargers.

Simple Setup

  • Connect the MST Hub to a DisplayPort 1.4 (DP++) compatible port on your computer.
  • Power the hub using the provided USB cable.
  • Use DisplayPort cables to attach up to three monitors from the hub's outputs.
  • Configure your display settings through your operating system for mirrored or extended modes.

Compatibility & Requirements

  • Requires a DisplayPort 1.4 (MST-supported) output on the computer.
  • Monitors must support the selected resolution and refresh rates.
  • Graphics card must support the bandwidth required for your chosen multi-monitor configuration.
  • Not compatible with legacy DisplayPort outputs lacking MST support.

Features

  • 3-Port DisplayPort 1.4 MST Hub (Multi-Stream Transport)
  • Supports Mirroring and Extended Desktop modes
  • Maximum total output: 8K@30Hz, 4K@144Hz (single), 4K@60Hz (dual), 4K@30Hz (triple)
  • HBR3 32Gbps bandwidth
  • Audio transmission up to 24bit/192kHz
  • HDCP v1.3 and DPCP content protection support
  • Sturdy black aluminium construction
  • USB powered, cable included

Product Details:
Connector A: DisplayPort (Male)
Connector B: 3 x DisplayPort (Female)
Colour: Aluminium Casing with Gold Plated Connectors
Packaging: Retail Box
Cable Type: 15cm DisplayPort (Male) to 3 x DisplayPort (Female) Splitter
