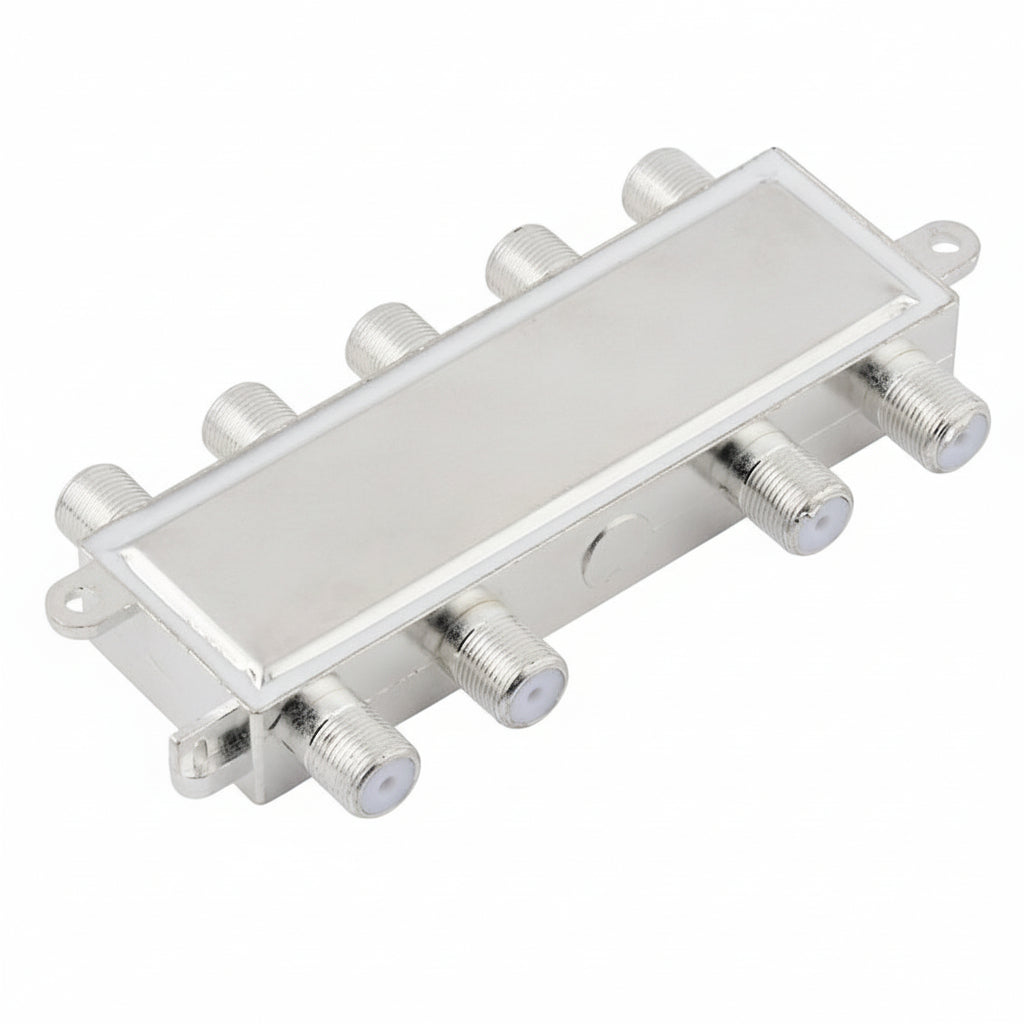

8-Way F-Type Coaxial Signal Splitter, 5–2400MHz, 1 In 8 Out, Power Pass, 75 Ohm, Weatherproof

$39.95

Easily distribute a single coaxial TV or antenna signal to up to eight different devices with this professional-grade 8-way F-type coaxial splitter. Designed for demanding multi-room setups in homes, offices, or commercial environments, this splitter ensures strong, consistent signal transmission for televisions, set-top boxes, and digital receivers across your entire space.

Built with a durable nickel-plated zinc die-cast housing for superior shielding and long-lasting outdoor or indoor use, this splitter covers a wide frequency range from 5 to 2400MHz—offering broad compatibility with digital TV, satellite, and cable systems. Its tongue-and-groove case design enhances RFI shielding up to 120dB to minimise interference. Power pass functionality supports 12V DC, 500mA on all ports, making it suitable for powered antenna systems. Protective caps are included for unused ports, and the unit is easily mountable on wooden surfaces for secure installation.

Key Features:

  • 8-way coaxial splitter to connect one input to eight outputs
  • Frequency range: 5–2400MHz for digital TV, satellite, and cable signal distribution
  • Superior RFI shielding (120dB) thanks to robust zinc die-cast housing and tongue-and-groove design
  • Power pass capability: 12V DC, 500mA through all ports
  • Impedance: 75 Ohm standard for TV systems
  • Weather-resistant, suitable for indoor or outdoor mounting
  • F-type female connectors for secure and reliable cable connections
  • Protective caps for unused outputs to prevent dust and moisture
  • Easy installation on wooden surfaces

Setup Instructions:

  1. Connect your incoming coaxial cable to the input port.
  2. Attach coaxial cables to any of the eight output ports for each device.
  3. Mount the splitter securely using appropriate hardware if needed.
  4. Place protective caps on unused outputs.

Compatibility & Requirements:

  • Suitable for use with F-type coaxial cables and devices
  • Compatible with digital free-to-air TV, satellite, and cable systems
  • Power pass for installations requiring active antennas or powered devices

Product Details:

  • Input: 1 x F-Type Coaxial (female)
  • Output: 8 x F-Type Coaxial (female)
  • Frequency range: 5–2400MHz
  • Through loss: <5dB
  • Shielding: 120dB RFI
  • Power pass: 12V DC, 500mA (all ports)
  • Impedance: 75 Ohm
  • Nickel-plated zinc die-cast housing
  • Protective caps for unused ports
  • Colour: Silver
  • Packaging: Poly Bag
