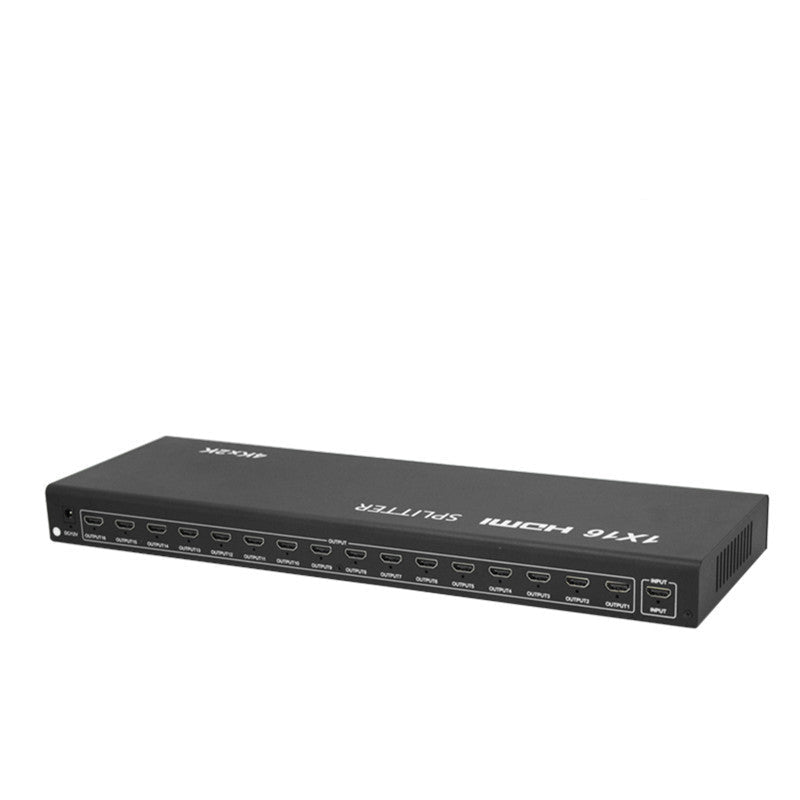

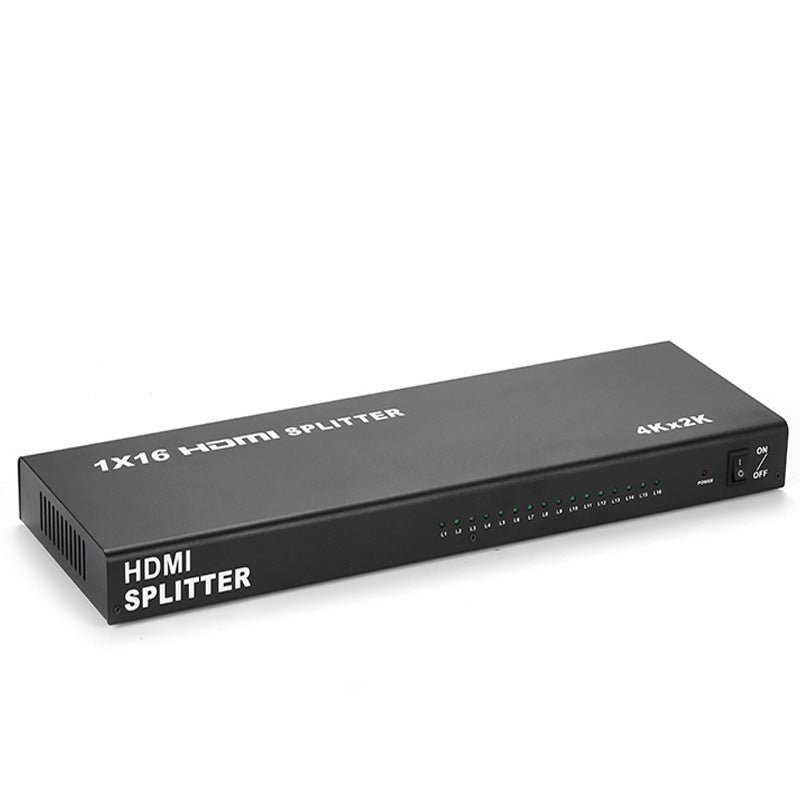

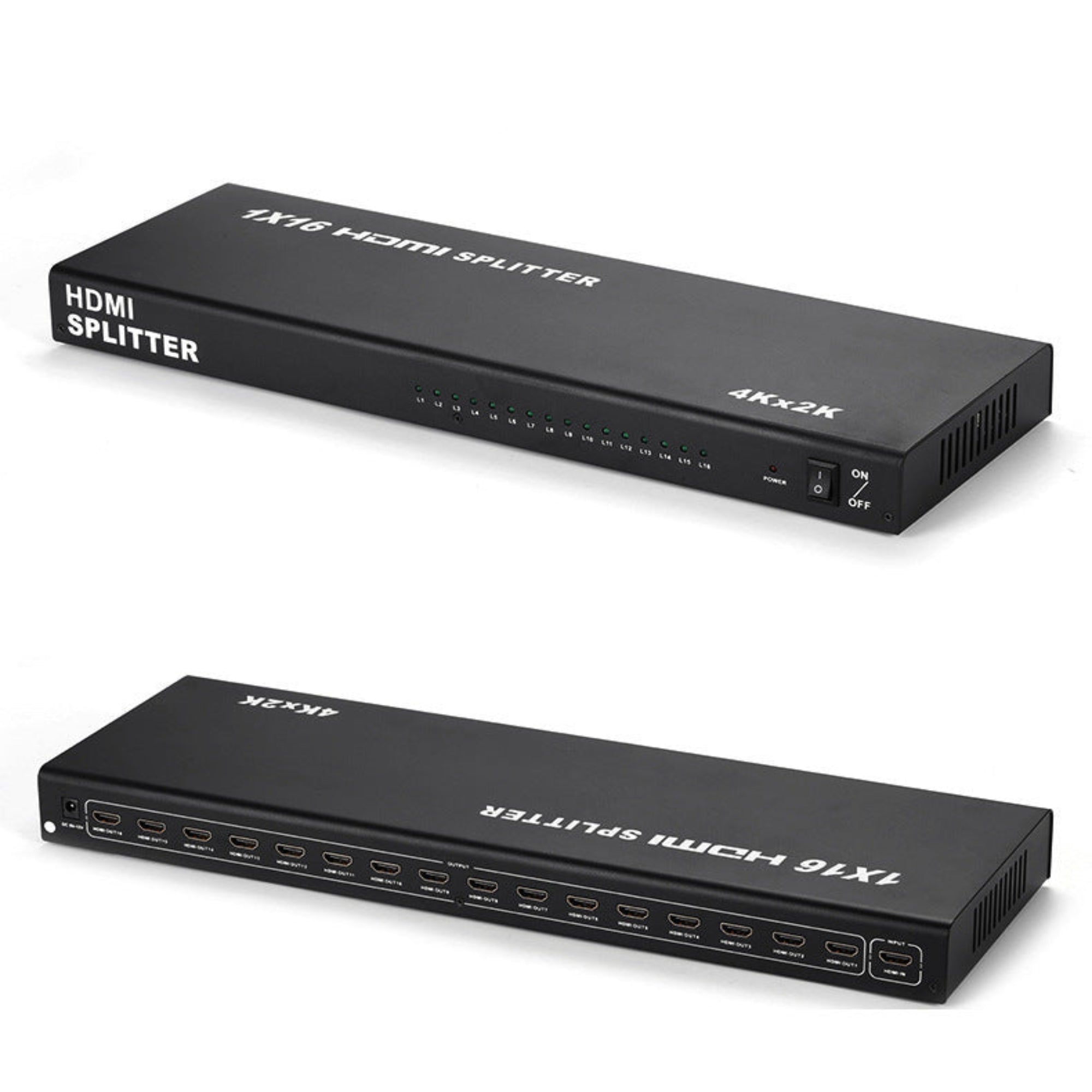

4K/60Hz HDMI 2.0 Splitter 1x16 with EDID Control & HDCP 2.2
Regular price
$329.95
Effortlessly distribute a single HDMI source to up to sixteen displays with this advanced 1x16 HDMI splitter. Engineered for performance, this splitter supports Ultra HD 4K at 60Hz, as well as full HD and 3D video signals, making it an excellent solution for commercial venues, presentations, digital signage, and large entertainment setups. Its robust signal amplification ensures reliable transmission over extended cable lengths, while EDID management via dip-switches allows optimal configuration for a wide range of display requirements. Housed in a durable metal chassis, the unit delivers stable operation, clear video output, and compatibility with a variety of digital audio formats.
Specifications
- HDMI version: 2.0 compliant input and outputs
- Number of inputs: 1 x HDMI
- Number of outputs: 16 x HDMI
- Supported video resolutions: 576i, 576p, 720i, 720p, 1080i, 1080p, 4K x 2K @ 60Hz
- Colour depth: Supports Deep Colour (12bit, 24bit, 36bit)
- HDCP support: Version 1.4 and 2.2 compliant
- Audio compatibility: DTS-HD, Dolby TrueHD, LPCM 7.1, AC3, DTS Master Audio, DSD
- Maximum cable length: Up to 3m input and 20m output HDMI cable (total 23m, dependent on cable quality)
- Signal amplification and equalisation for stable long-distance transmission
- Includes mains power adaptor and English user manual
Features
- Distributes one HDMI source signal to sixteen displays simultaneously
- Full support for Ultra HD 4K at 60Hz and 3D content
- Signal retiming for enhanced stability and extended reach
- Dip-switch EDID control for easy configuration of output resolutions
- Compatible with DVI-D when used with appropriate adapters (not included)
- Sturdy metal chassis for dependable performance and heat dissipation
- Plug-and-play operation for quick installation
