4-Port HDMI Quad Multi-Viewer & KVM Switch with 4K @ 30Hz Support
Experience streamlined control and efficient monitoring with this 4-port HDMI KVM Quad Viewer. Easily connect up to four computers and manage them using a single mouse, keyboard, and display. Designed for seamless switching, this device can present one or multiple source screens simultaneously in various layouts, all on a single monitor. Its advanced remote and hotkey capabilities offer flexible and effortless mode selection, making it ideal for multitasking across multiple systems. Enjoy sharp, high-quality visuals up to 4K resolution at 30Hz, and plug-and-play USB connectivity for instant operation across compatible operating systems. Perfect for any environment where efficient multi-PC management is essential.
Advanced KVM Functionality:
This switch goes beyond basic KVM features with two exclusive USB modes:
USB Synchronisation Mode: Press "*" + "0" to activate. All four PC port LEDs light up, allowing your mouse and keyboard to control all four connected PCs simultaneously—ideal for cross-computer tasks.
USB Switching Mode: Use hotkeys "*" + "F1" to "*" + "F4" to select which PC is actively controlled by your mouse and keyboard.
Mouse Crossing Mode: Press "*" + "S" to enable mouse cursor movement freely across all four screens (in multi-view mode) for seamless navigation.
Six Display Modes for Flexible Viewing
Choose from six preset screen layouts to match your workflow:
- Single screen (full-screen for any input)
- Left-right dual screen
- Top-bottom dual screen
- One large + three small
- Quad screen (2x2)
- Quad screen (horizontal arrangement)
Switch modes easily via the included remote control, front-panel buttons, or hotkeys.
Specifications

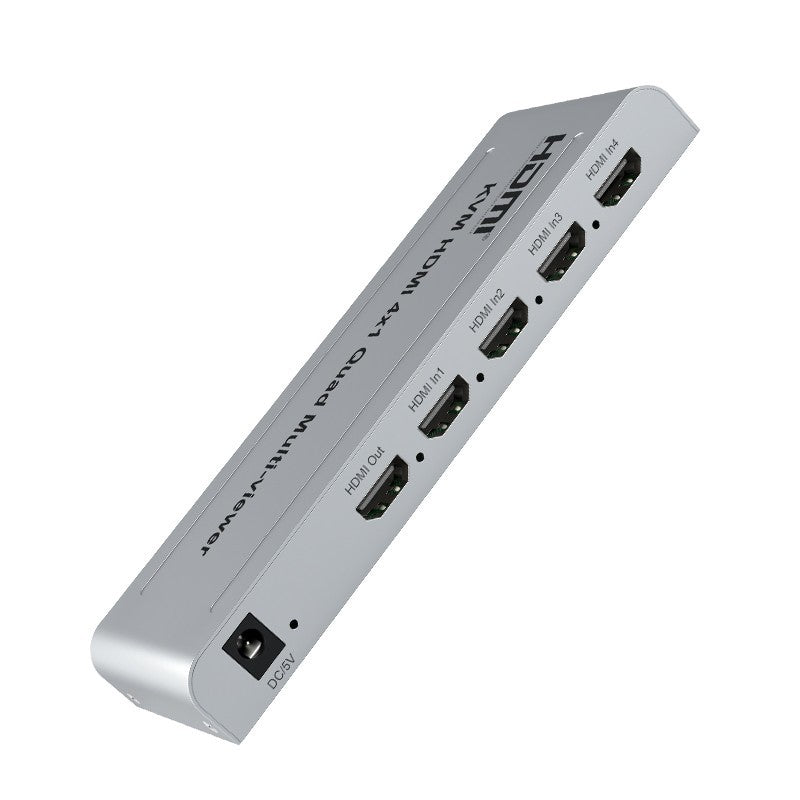

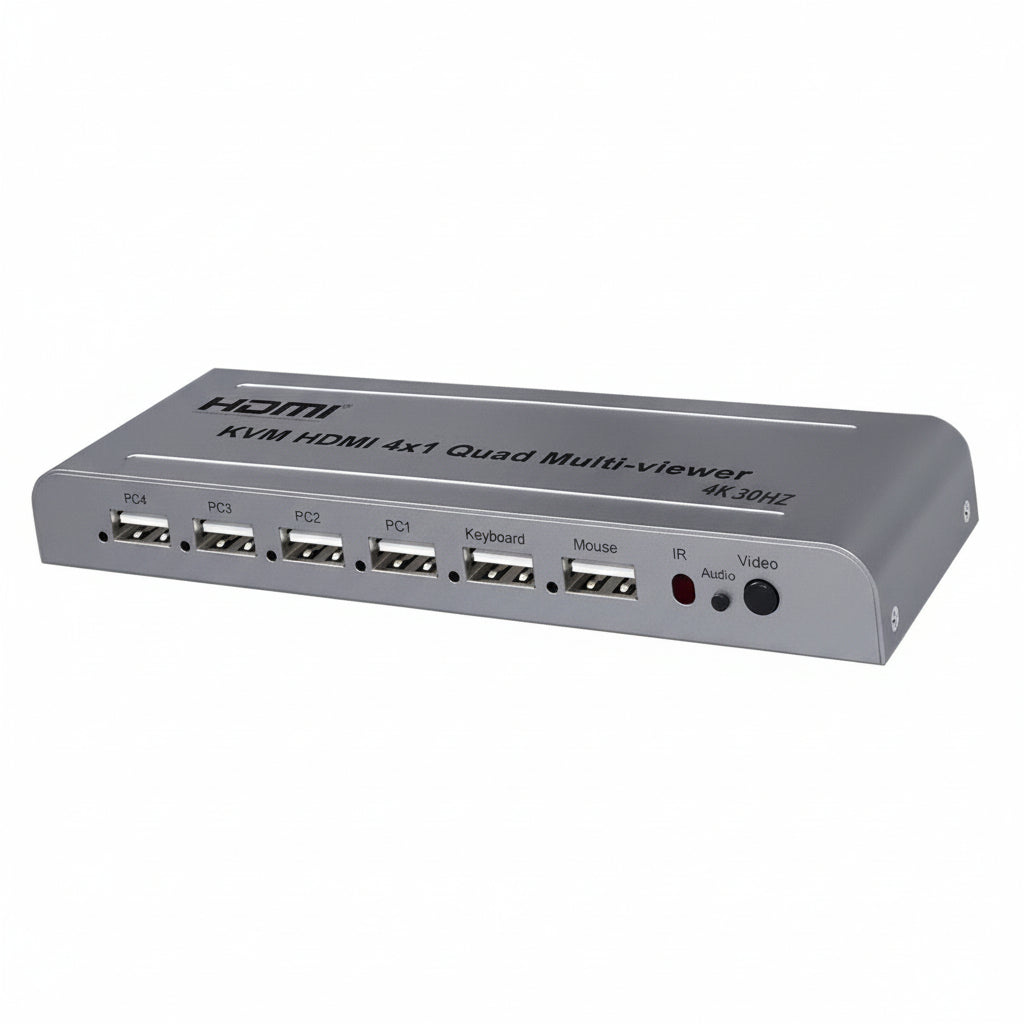

- Inputs: 4 x HDMI, 4 x USB
- Outputs: 1 x HDMI, 4 x USB
- Supported Video Resolution: Up to 4K @ 30H; also supports 1080p, 720p, 575p, 480p
- Switching Methods: Push button, remote control, keyboard hotkeys
- Display Modes: 6 modes (single and multi-view)
- Audio Support: PCM 2.0 (not compatible with Dolby Digital or DTS)
- Hot swapping supported for connected PCs
- HDCP Version: 1.2
- Power Supply: DC 5V / 1.5A (input: AC 100-240V, 50/60Hz)
- Operating Current: 900mA
Features
- Connect and control up to four PCs through one monitor, keyboard, and mouse
- Quad viewer functionality enables simultaneous display of multiple PC outputs
- Six preset screen layouts for flexible viewing configurations
- Switch inputs via remote control, hotkeys, or front-panel buttons
- USB switching and synchronisation modes available
- Plug and play operation; no software required
- Compatible with Windows, macOS, Linux, and Android
- Supports a range of video resolutions including 1080p, 720p, 575p, and 480p
- Includes remote control, mains power adapter, USB cables, and user manual
